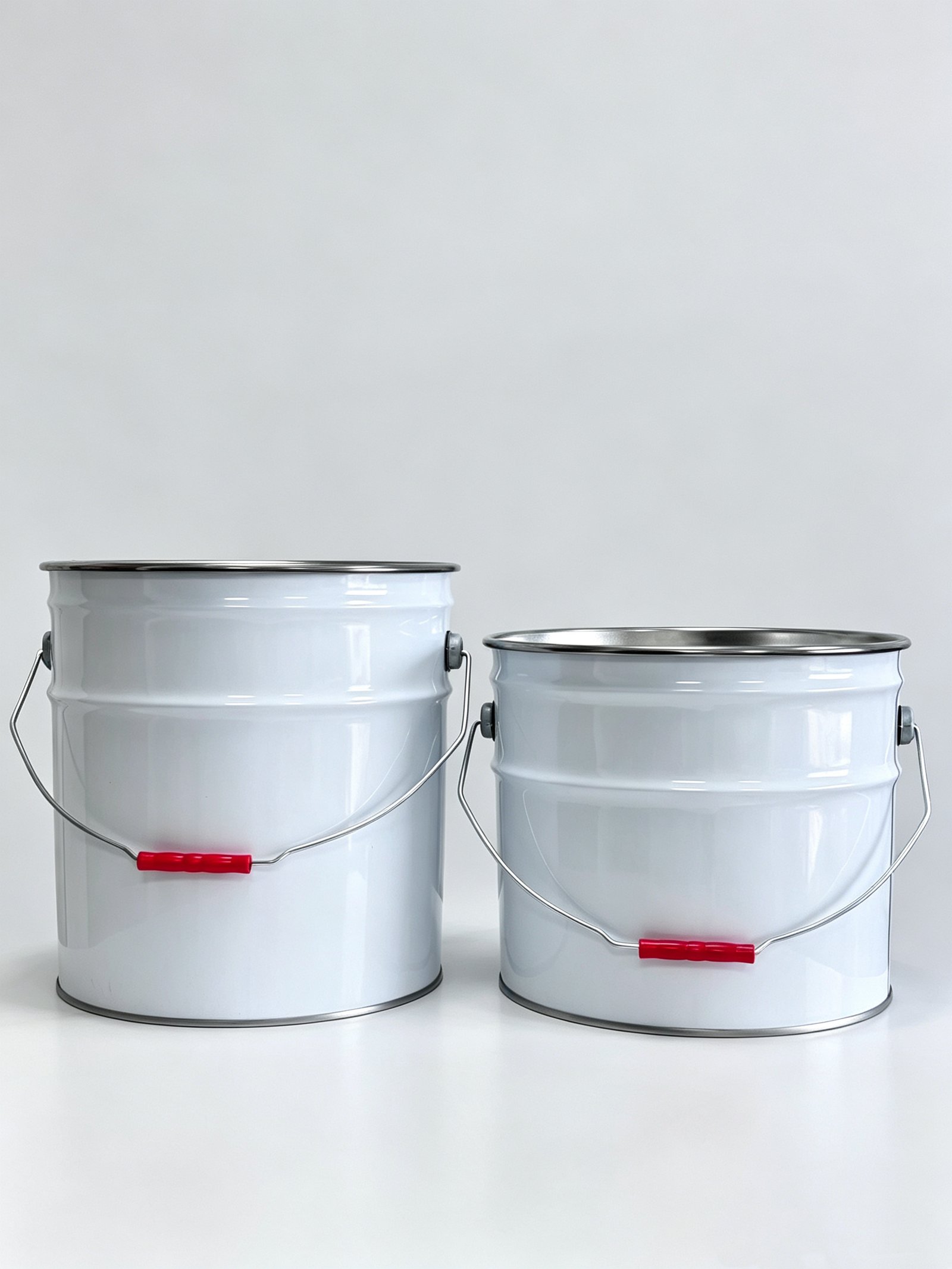

Features and Applications: The 10L and 18L tapered open-head metal pails feature a fully open, tapered-body design that allows convenient nesting during transportation, reduces storage space, and facilitates efficient filling. The pails can also be used directly for proportioning and mixing the contents, making them suitable for brush and spray applications. Custom patterns and text can be printed on the pail body, while company logos or lettering can be embossed on the lid to enhance brand visibility and product value. These pails are widely used for the packaging, transportation, and storage of chemical paints, water-based latex paints, waterproof coatings, and related products.

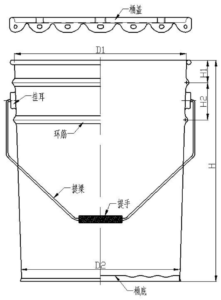

| Specification / Name | 10L Lug Cover Pail | Product No. | |
| Pail Mouth Inner Diameter D1 | 236mm | Pail Bottom Inner Diameter D2 | 220mm |
| Pail Outer Height H | 292mm | Beading Position H1 | 33mm |
| Beading Position H2 | 66mm | Material Thickness | 0.30 – 0.35mm |
| Hazardous Packaging Category | Category II* |
| Component Name | Part No. | Material | Remarks |
| Pail Body | Tinplate, Base Steel | Patterns and text are printed according to customer requirements. | |
| Pail Bottom | Tinplate, Base Steel, Galvanized Sheet | Available in gold, white, or metallic finish. | |
| Pail Lid | Base Steel, Chrome-Plated Steel (TFS), Galvanized Sheet | Available in gold, white, or metallic finish. | |
| Ear Lug (Bracket) | Galvanized Sheet | — — | |
| Bail Handle | Galvanized Steel Wire | PE plastic sleeve is available in red or white. |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Specification / Product Name | 18L Bail-Handle Metal Pail | Product No. | — |
| Top Internal Diameter D1 | 285 mm | Bottom Internal Diameter D2 | 272 mm |
| Overall Height H | 330 mm / 334 mm / 360 mm | Rib Position H1 | 32–35 mm |
| Rib Position H2 | 65–70 mm | Material Thickness | 0.32–0.35 mm |
| Dangerous Goods Packaging Category | Class II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | — | Blackplate | Graphics and text can be printed according to customer requirements |
| Pail Bottom | — | Blackplate or Chrome-Plated Steel Sheet | Available in gold, white, or metallic finish |
| Pail Lid | — | Blackplate, Chrome-Plated Steel Sheet, or Galvanized Steel Sheet | Available in gold, white, or metallic finish |
| Handle Lug | — | Galvanized Steel Sheet | — |
| Bail Handle | — | Galvanized Steel Wire | Red or white PE plastic grip available |
