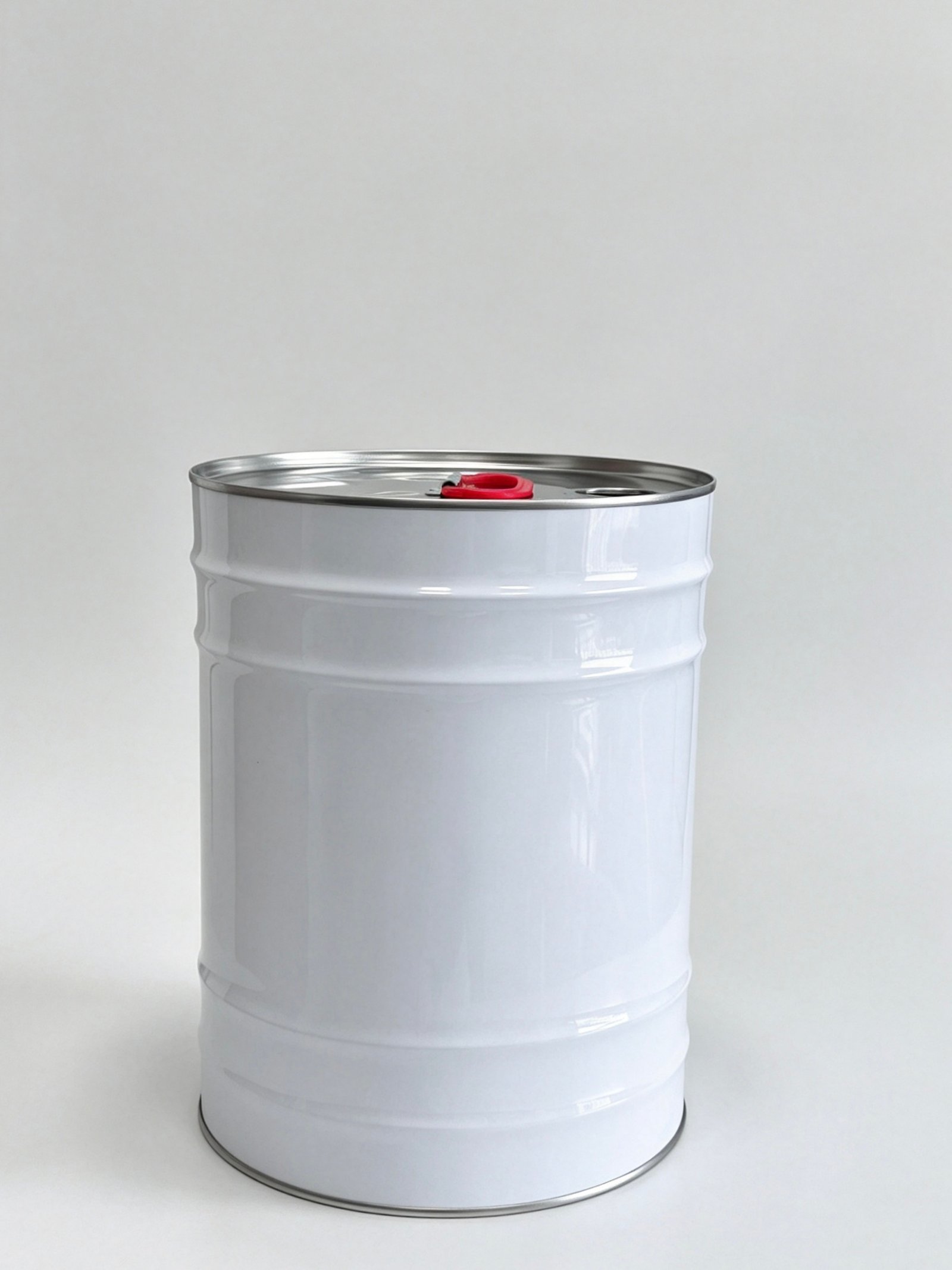

Features and Applications: The 10L, 14L, 16L, 17L, and 20L metal pail series includes round pails, necked-in pails, tapered tight-head pails, and conical-neck pails, providing suitable packaging solutions for a wide range of chemical products. The 10L round pail features a compact structure and a reusable plastic cap for convenient opening and closing, making it suitable for the filling, transportation, storage, and sale of thinners, curing agents, and similar products. The 10L, 16L, 17L, and 20L necked-in pails are designed with different top and bottom diameters, ensuring stable stacking while maintaining excellent overall strength. They are widely used for chemical paints, wood coatings, waterproof coatings, thinners, and curing agents. The 14L tapered tight-head pail has a bottom diameter larger than its top diameter, providing enhanced structural strength and improved stability during stacking, transportation, and storage, and is especially suitable for premium paints and waterproof coatings. The 16L and 17L conical-neck pails offer excellent sealing performance and overall strength, with a larger top diameter than bottom diameter to support secure stacking and efficient handling. They are mainly used for paints, waterproof coatings, thinners, and other chemical products. All models can be customized with printed patterns and text on the pail body, while selected models can also feature embossed company logos or lettering on the top, helping improve brand visibility and product value.

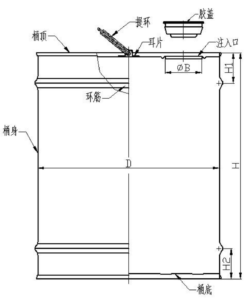

| Specification / Name | 10L Round Pail | Product No. | |
| Filling Inlet Φ B | 42mm or 66mm | Pail Inner Diameter D | 210mm |
| Pail Outer Height H | 255mm, 260mm | Beading Position H1 | 35 or 50mm |
| Beading Position H2 | 35 or 50mm | Material Thickness | 0.28 – 0.33mm |
| Hazardous Packaging Category | Category II* |
| Component Name | Part No. | Material | Remarks |
| Pail Body | Base Steel, Tinplate (Recommended), Galvanized Sheet | Patterns and text are printed according to customer requirements. | |
| Pail Bottom | Base Steel, Tinplate (Recommended), Galvanized Sheet | Available in gold, white, or metallic finish. | |
| Pail Top | Base Steel, Tinplate (Recommended), Galvanized Sheet | Available in gold, white, or metallic finish. | |
| Carrying Ring | PE or Galvanized Wire | PE is available in red or white. | |
| Plug Cap | Base Steel, Tinplate (Recommended) | Available in gold, white, or metallic finish. | |
| Plastic Cap | PE | Available in red or white. | |
| Ear Lug | Tinplate | Metallic finish. | |
| Embossing | — — | Can be embossed on the pail top. |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model / Name | 10L Round Metal Pail | Product No. | |
| Filling Opening φB | 42mm or 66mm | Top Inner Diameter D1 | 265mm |
| Bottom Inner Diameter D2 | 272mm | Rib Position H1 | 48mm |
| Overall Height H | 225mm | Material Thickness | 0.32–0.35mm |
| Packaging Group | Group II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Patterns and text can be printed according to customer requirements | |
| Pail Bottom | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Pail Top | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Bail Handle | PE or Galvanized Steel Wire | PE handle available in red or white | |
| Plug Cap | Blackplate, Tinplate (Recommended) | Available in gold, white, or metallic finish | |
| Plastic Cap | PE | Available in red or white | |
| Handle Lug | Tinplate | Metallic finish | |
| Embossing | — | Embossing available on the pail top |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model / Name | 10L Round Metal Pail | Product No. | |
| Filling Opening φB | 42mm or 66mm | Top Inner Diameter D1 | 271mm |
| Bottom Inner Diameter D2 | 278mm | Rib Position H1 | 45mm |
| Rib Position H5 | 50mm | Overall Height H | 215mm |
| Material Thickness | 0.33–0.35mm | Packaging Group | Group II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Patterns and text can be printed according to customer requirements | |
| Pail Bottom | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Pail Top | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Bail Handle | PE or Galvanized Steel Wire | PE handle available in red or white | |
| Plug Cap | Blackplate, Tinplate (Recommended) | Available in gold, white, or metallic finish | |
| Plastic Cap | PE | Available in red or white | |
| Handle Lug | Tinplate | Metallic finish | |
| Embossing | — | Embossing available on the pail top |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model / Name | 14L Tapered Tight-Head Metal Pail | Product No. | |
| Top Inner Diameter D1 | 265mm | Bottom Inner Diameter D2 | 272mm |
| Overall Height H | 293mm | Filling Opening φB | 60mm Threaded Opening |
| Material Thickness | 0.32–0.35mm | Packaging Group | Group II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Patterns and text can be printed according to customer requirements | |
| Pail Bottom | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Pail Top | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Threaded Cap | Q235 Cast Steel | Color-zinc-plated finish | |
| Bail Handle | PE or Galvanized Steel Wire | PE handle available in red or white |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model / Name | 16L Round Metal Pail | Product No. | |
| Filling Opening φB | 42mm or 66mm | Top Inner Diameter D1 | 260mm |
| Bottom Inner Diameter D2 | 265mm | Rib Position H1 | 40mm |
| Rib Position H2 | 50mm | Rib Position H3 | 50mm |
| Rib Position H4 | 53mm | Overall Height H | 343mm |
| Material Thickness | 0.33–0.35mm | Packaging Group | Group II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | Blackplate, Tinplate (Recommended) | Patterns and text can be printed according to customer requirements | |
| Pail Bottom | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold or metallic finish | |
| Pail Top | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold, white, or metallic finish | |
| Bail Handle | PE or Galvanized Steel Wire | PE handle available in red or white | |
| Plug Cap | Blackplate, Tinplate (Recommended) | Available in gold, white, or metallic finish | |
| Plastic Cap | PE | Available in red or white | |
| Handle Lug | Tinplate | Metallic finish | |
| Embossing | — | Embossing available on the pail top |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Specification / Product Name | 16L Conical-Neck Pail | Product No. | — |
| Filling Opening ØB | 42 mm or 60 mm | Top Internal Diameter D1 | 265 mm |
| Bottom Internal Diameter D2 | 260 mm | Overall Height H | 310 mm / 341 mm / 345 mm |
| Rib Position H1 | 45 mm | Rib Position H2 | 40 mm |
| Rib Position H3 | 40 mm | Rib Position H4 | 45 mm |
| Material Thickness | 0.32–0.35 mm | Dangerous Goods Packaging Category | Class II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | — | Blackplate, Tinplate (Recommended), or Galvanized Steel Sheet | Graphics and text can be printed according to customer requirements |
| Pail Bottom | — | Blackplate, Tinplate (Recommended), or Galvanized Steel Sheet | Available in gold, white, or metallic finish |
| Pail Top | — | Blackplate, Tinplate (Recommended), or Galvanized Steel Sheet | Available in gold, white, or metallic finish |
| Bail Handle | — | PE or Galvanized Steel Wire | PE handle available in red or white |
| Bung Cap | — | Blackplate or Tinplate (Recommended) | Available in gold, white, or metallic finish |
| Plastic Cap | — | PE | Available in red or white |
| Handle Lug | — | Tinplate | Metallic finish |
| Embossing | — | — | Custom embossing available on the pail top |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Specification / Product Name | 17L Conical-Neck Metal Pail | Product No. | — |
| Filling Opening ØB | 42 mm or 60 mm | Top Internal Diameter D1 | 271 mm |
| Bottom Internal Diameter D2 | 265 mm | Overall Height H | 310 mm / 341 mm / 345 mm |
| Rib Position H1 | 45 mm | Rib Position H2 | 40 mm |
| Rib Position H3 | 40 mm | Rib Position H4 | 45 mm |
| Material Thickness | 0.32–0.35 mm | Dangerous Goods Packaging Category | Class II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | — | Blackplate, Tinplate (Recommended), or Galvanized Steel Sheet | Graphics and text can be printed according to customer requirements |
| Pail Bottom | — | Blackplate, Tinplate (Recommended), or Galvanized Steel Sheet | Available in gold, white, or metallic finish |
| Pail Top | — | Blackplate, Tinplate (Recommended), or Galvanized Steel Sheet | Available in gold, white, or metallic finish |
| Bail Handle | — | PE or Galvanized Steel Wire | PE handle available in red or white |
| Bung Cap | — | Blackplate or Tinplate (Recommended) | Available in gold, white, or metallic finish |
| Plastic Cap | — | PE | Available in red or white |
| Handle Lug | — | Tinplate | Metallic finish |
| Embossing | — | — | Custom embossing available on the pail top |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model / Name | 17L Necked-In Metal Pail | Product No. | |
| Filling Opening φB | 42mm or 66mm | Top Inner Diameter D1 | 265mm |
| Bottom Inner Diameter D2 | 272mm | Rib Position H1 | 50mm |
| Rib Position H2 | 60mm | Overall Height H | 340mm |
| Material Thickness | 0.33–0.35mm | Packaging Group | Group II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | Blackplate, Tinplate (Recommended) | Patterns and text can be printed according to customer requirements | |
| Pail Bottom | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold or metallic finish | |
| Pail Top | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold or metallic finish | |
| Bail Handle | PE or Galvanized Steel Wire | PE handle available in red or white | |
| Plug Cap | Blackplate, Tinplate (Recommended) | Available in gold, white, or metallic finish | |
| Plastic Cap | PE | Available in red or white | |
| Handle Lug | Tinplate | Metallic finish | |
| Embossing | — | Embossing available on the pail top |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model / Name | 20L Round Metal Pail | Product No. | |
| Filling Opening φB | 42mm | Top Inner Diameter D1 | 271mm |
| Bottom Inner Diameter D2 | 278mm | Rib Position H1 | 48mm |
| Rib Position H2 | 67mm | Overall Height H | 383mm |
| Material Thickness | 0.33–0.35mm | Packaging Group | Group II* |
| Component | Part No. | Material | Remarks |
|---|---|---|---|
| Pail Body | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Patterns and text can be printed according to customer requirements | |
| Pail Bottom | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold or metallic finish | |
| Pail Top | Blackplate, Tinplate (Recommended), Galvanized Steel Sheet | Available in gold or metallic finish | |
| Bail Handle | PE or Galvanized Steel Wire | PE handle available in red or white | |
| Plastic Cap | PE | Available in red or white | |
| Handle Lug | Tinplate | Metallic finish | |
| Embossing | — | Embossing available on the pail top |
